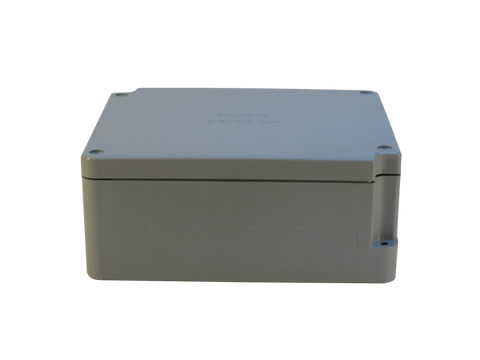

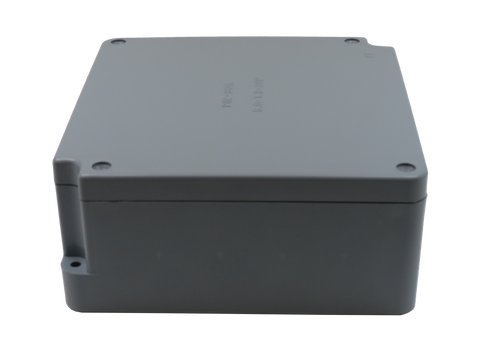

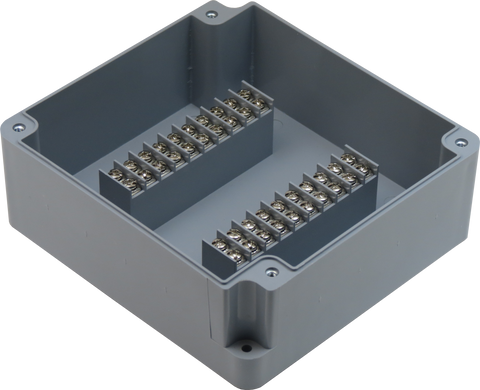

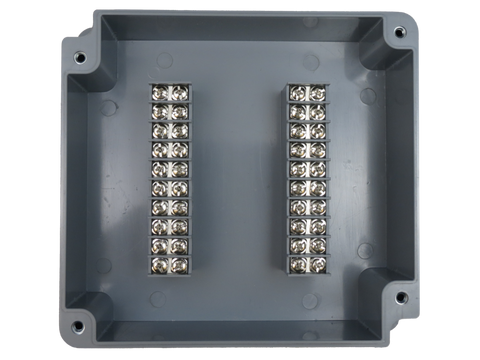

Enclosure with 20 Circuit Terminal Block Grey ABS Solid Cover
The Terminal Enclosure from Lite Cycle is a junction box with integrated center mounted terminal block. The grey ABS terminal enclosure with 20 positions is useful for wiring trunking applications... read more
What's Included
- Base: Grey ABS
- Cover: Grey ABS
- Mounting Hardware: Machine Screws and Hexnuts
Product Specifications
- Color : Grey
- Height : 2.559 in
- Ingress Protection : IP65 / NEMA 6X
- Length : 6.299 in
- Material : ABS
- Width : 5.905 in
- Mounting Hole Size : 0.17 in
Electrical Specifications
- Circuit Count: 20 Circuits
- Companion Jumper: SG-BB-15
- Input Current: 15 Ampers
- Rated Frequency: 60Hz
- Rated Input Voltage: 120 Volts
Safety Specifications
- Certificate Number: U8 12 11 71883 003
- Certifying Agency: TUV-SUD America Inc.
- Countries: Canada, USA
- Standards: UL 508A:2005
Description
The Terminal Enclosure from Lite Cycle is a junction box with integrated center mounted terminal block. The grey ABS terminal enclosure with 20 positions is useful for wiring trunking applications and control connections. Frequent uses include industrial machinery, robotics, commercial wiring, low voltage control systems, solar industry and many more. This terminal enclosure features center marks for drilling and captive screws allowing easy installation and removal of cover.
This all-in-one product is an innovative solution to maximize productivity and save resources. Practical, more esthetically pleasing and safe, the Terminal Enclosure from Lite Cycle provides protection for wiring junctions.
- For common connections on multiple circuits use Busbar SG-BB-15
