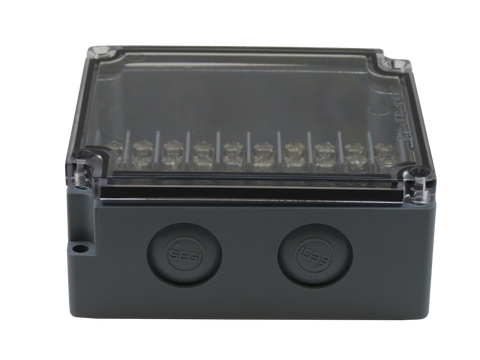

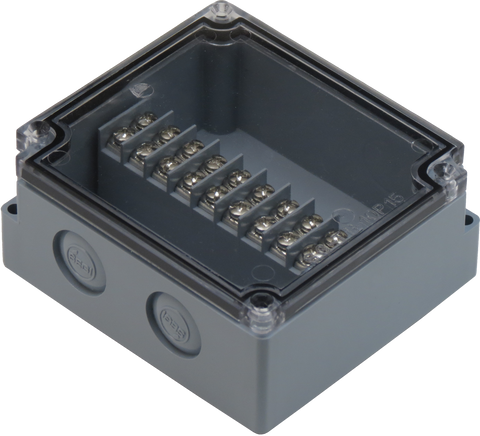

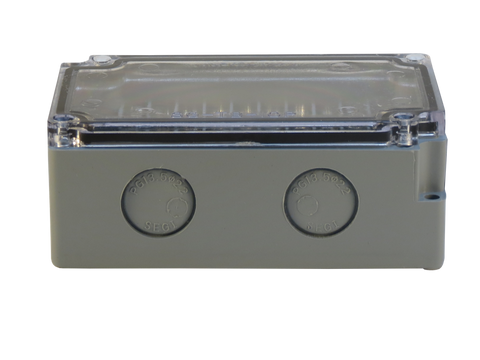

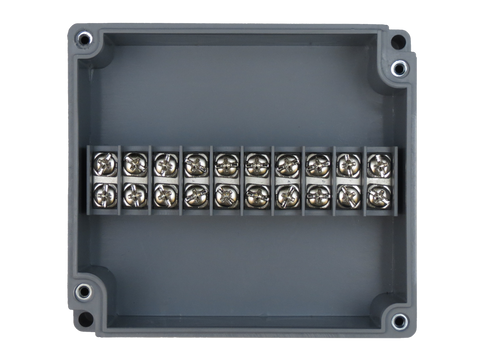

Enclosure with Terminal Block 10 Circuits Grey ABS with Clear Cover
Featuring a Polycarbonate Clear Cover, this ABS Terminal Enclosure is frequently used in large facilities or equipment where routine inspection is required. This junction box with integrated center mounted terminal... read more
What's Included
- Base: Grey ABS
- Cover: Clear Polycarbonate
- Mounting Hardware: Machine Screws and Hexnuts
Downloads
Datasheet [PDF] Click to Download
Product Specifications
- Color : Grey/Clear
- Height : 1.772 in
- Ingress Protection : IP65 / NEMA 6X
- Knockouts : 4 Total
- Length : 3.543 in
- Material : ABS/Polycarbonate
- Trade Size : 1/2in. NPT
- Width : 3.937 in
- Mounting Hole Size : 0.17 in
Electrical Specifications
- Circuit Count: 10 Circuits
- Companion Jumper: SG-BB-15
- Input Current: 15 Ampers
- Rated Frequency: 60Hz
- Rated Input Voltage: 120 Volts
Safety Specifications
- Certificate Number: U8 12 11 71883 003
- Certifying Agency: TUV-SUD America Inc.
- Countries: Canada, USA
- Standards: UL 508A:2005
Description
Featuring a Polycarbonate Clear Cover, this ABS Terminal Enclosure is frequently used in large facilities or equipment where routine inspection is required. This junction box with integrated center mounted terminal block with 10 positions is very useful for wiring trunking applications and control connections. This terminal enclosure features molded knockouts and captive screws allowing easy installation and removal of cover.
This all-in-one product is an innovative solution to maximize productivity and save resources. Practical, more esthetically pleasing and safe, the Terminal Enclosure from Lite Cycle provides protection for wiring junctions.
- Used with the DS-PG-13.5 Cable Gland
- For common connections on multiple circuits use Busbar SG-BB-15
