25mm Red Push Button Box 1 Station
Colorful and aesthetically beautiful, Lite Cycle presents an innovative and safer way to think switch boxes. Frequently used for Emergency Stop Switches, Lite Cycle's red switch box has high visibility with... read more
What's Included
Downloads
Product Specifications
- Height : 2.815 in.
- Length : 3.546 in.
- Trade Size : 22mm
- Width : 3.132 in.
Electrical Specifications
Safety Specifications
- Certificate Number: U8 13 11 71883 005
- Standards: UL508A:2001(R2010), CAN/CSA-C22.2 No. 14:2013
Description

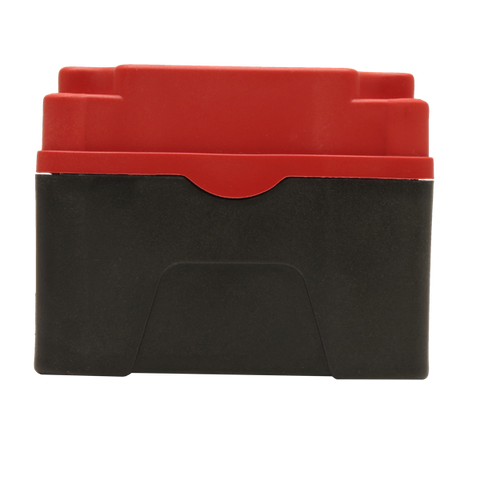

Colorful and aesthetically beautiful, Lite Cycle presents an innovative and safer way to think switch boxes. Frequently used for Emergency Stop Switches, Lite Cycle's red switch box has high visibility with its bright emergency red color for additional safety when operating. The product is manufactured with High Durability PBT with counter rotating locks. Resin colors allow for long life without fading, the base features molded knockouts for easy installation. The pushbutton entrance size is 25 millimeters. The enclosure is resistant to oil, easily to clean and safe for high temperature applications.
Specifications
- Length : 3.546 (90 mm)
- Width : 3.132 (80 mm)
- Height : 2.815 (70mm)

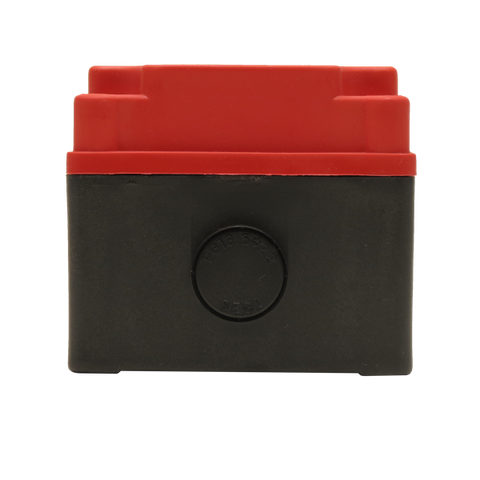

- Knockout Location : Centered on Base of width or Narrow side
- Knockout Size : 22mm
